德国宝帝3233型电磁阀 宝德2通隔膜阀

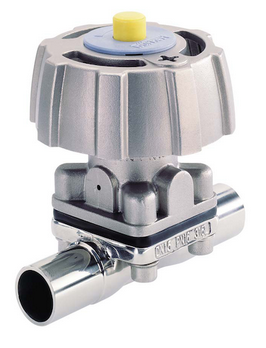

紧凑型3233手动操作的隔膜阀由流量优化的铸造不锈钢主体和各种表面处理，隔膜和手动执行器组成。材料组合可选。隔膜既是开关元件又是密封元件。它可以很容易地更换。流量可以通过手动执行器连续调节。阀门没有死体积，可以安装成自排水。这使得高流量和各种应用得以实现。阀门是可高压灭菌的。
通过膜片将流体从操作机构中分离出来
Port connection DN 4 - 50
Body material Cast stainless steel 316 L/1.4435

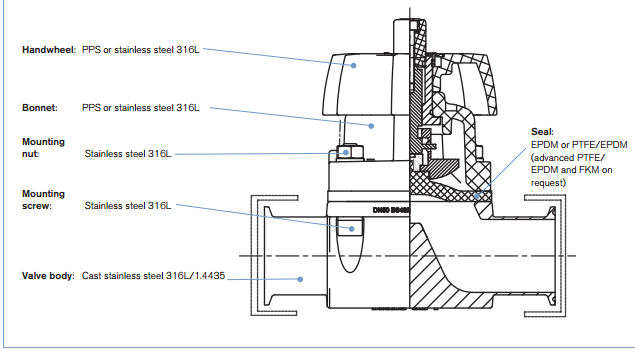

Actuator materials
Handwheel and bonnet PPS, stainless steel
Seal materials EPDM, PTFE/EPDM (advanced PTFE/EPDM, FKM on
request)
Medium Neutral gases and liquids, high purity, sterile, aggressive
or abrasive fluids
Surface finish
internal mechanical polished
(external cast surface)
internal electro polished (external
cast surface electro polished)
(further on request)
(average surface finish)
Ra £ 0.8 µm
Ra £ 0.6 µm
Medium pressure 0 up to 10 bar
Medium temperatures
EPDM, PTFE/EPDM,
advanced PTFE/EPDM (on request)1)
FKM on request
-10 to +130°C (briefly up to +150°C for steam sterilisation)
-10 to+130°C
Ambient temperature Up to +130°C
Briefly up to +150°C
Port connections
Weld end acc.
Clamp acc.
Sterile threaded ends and
other ports
•EN ISO 1127/ISO 4200
•DIN 11850
•SMS 3008
•ASME BPE on request
•ISO 2852/SMS 3017
•DIN 32676
•BS 4825
on request
Installation
with self-draining operation
As required, preferably with actuator in upright position
see drawing p. 2
质量FDA
8 1/4” 8 13.5 1.0 10 442 147 442 148
10 3/8” 8 17.2 1.0 10 442 171 442 172
15 1/2” 15 21.3 6.0 10 442 270 442 271
20 3/4” 20 26.9 11.0 10 442 309 442 310
25 1” 25 33.7 16.0 10 442 352 442 353
32 1 1/4” 40 42.4 29.0 10 551 965 554 966
40 1 1/2” 40 48.3 29.0 10 442 410 442 411
50 2” 50 60.3 50.0 7 442 465 442 466
435240 3233-2-0-50,0-AB-VA-SA47-D051 * NO01+NO05
435241 3233-2-0-15,0-AB-VA-SA42-D050 * NO01+NO05
435242 3233-2-0-20,0-AB-VA-SA43-D050 * NO01+NO05
435243 3233-2-0-25,0-AB-VA-SA44-D050 * NO01+NO05
435244 3233-2-0-32,0-AB-VA-SA45-D050 * NO01+NO05
435245 3233-2-0-40,0-AB-VA-SA46-D050 * NO01+NO05
435246 3233-2-0-50,0-AB-VA-SA47-D050 * NO01+NO05
435259 3233-2-0-15,0-AB-VA-SD42-D051 * NO01+NO05
435260 3233-2-0-20,0-AB-VA-SD43-D051 * NO01+NO05
435261 3233-2-0-25,0-AB-VA-SD44-D051 * NO01+NO05
435262 3233-2-0-32,0-AB-VA-SD45-D051 * NO01+NO05
435263 3233-2-0-40,0-AB-VA-SD46-D051 * NO01+NO05
435264 3233-2-0-50,0-AB-VA-SD47-D051 * NO01+NO05
435265 3233-2-0-15,0-AB-VA-SD42-D050 * NO01+NO05
435266 3233-2-0-20,0-AB-VA-SD43-D050 * NO01+NO05
435267 3233-2-0-25,0-AB-VA-SD44-D050 * NO01+NO05
435268 3233-2-0-32,0-AB-VA-SD45-D050 * NO01+NO05
435269 3233-2-0-40,0-AB-VA-SD46-D050 * NO01+NO05
435270 3233-2-0-50,0-AB-VA-SD47-D050 * NO01+NO05
435283 3233-2-0-15,0-AB-VA-GM84-D051 * NO01+NO05
435284 3233-2-0-20,0-AB-VA-GM85-D051 * NO01+NO05
435285 3233-2-0-25,0-AB-VA-GM86-D051 * NO01+NO05
435286 3233-2-0-32,0-AB-VA-GM87-D051 * NO01+NO05
435287 3233-2-0-40,0-AB-VA-GM88-D051 * NO01+NO05
435288 3233-2-0-50,0-AB-VA-GM89-D051 * NO01+NO05
435289 3233-2-0-15,0-AB-VA-GM84-D050 * NO01+NO05
435290 3233-2-0-20,0-AB-VA-GM85-D050 * NO01+NO05
435291 3233-2-0-25,0-AB-VA-GM86-D050 * NO01+NO05
435292 3233-2-0-40,0-AB-VA-GM88-D050 * NO01+NO05
435293 3233-2-0-50,0-AB-VA-GM89-D050 * NO01+NO05
436473 SE32-0000-0000-R3-A-S1-2-BCV/DC-Z
436474 SE32-0000-0000-R3-A-S1-A-BCV/DC-4
436475 SE32-0000-0000-R3-A-S1-6-BCV/DC-W
436488 1501-0000-PP-RA50-0
436489 1501-0000-PE-RA50-0
436501 8400-GS84-VAFF-T2-A-S1-2-BCV/DC-Z
436503 8400-GS84-VAFF-T2-A-S1-6-BCV/DC-W
