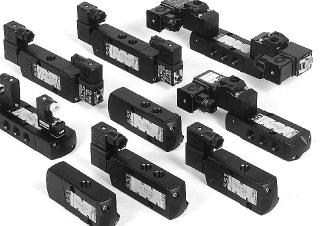

世格551系列滑阀,SCG353A051

世格551系列滑阀,SCG353A051

根据防护等级IP67，中东欧10嵌入螺钉端子线圈的防水外壳

按照“ATEX”和国家标准的危险场所防爆电磁阀

据“NEMA”标准，防爆和防水电磁阀

软管连接处决（3“只）

符合“UL”标准

视觉指示和/或峰值电压抑制插塞

电子计时器

阀门也可以用FPM（含氟弹性体）隔膜和密封材料供应。使用适当的suffi点¯x

函identifi阳离子

安装

该阀可以安装在任何位置，而不影响操作

螺纹管连接：G（ISO 228/1）或压缩拟合

对于压缩拟合类型的密封性受到压缩的垫片上喷吹管实现

使用橡胶垫片的密封件将允许管道有轻微错位

其他的管螺纹可根据要求提供

安装/维修说明包含每个阀门

备件包和更换线圈可

diaphragm pulse valves are especially designed for dust collector service

applications, combining high fl ow, long life and extremely fast opening and

closing to produce reliable and economical operation

• Integral compression fi ttings for fast, easy, secure installation

• The high quality diaphragms are reinforced and wear resistant to guarantee a

long operating life, even under harsh conditions

• The integral operators are provided with epoxy moulded F-class coils. Various

optional waterproof and explosionproof solenoids for use in potentially explosive

atmospheres (gas & dust) according to Directive ATEX 94/9/EC can be mounted

on the same basic valve (see pages 50 to 58)

• The components satisfy all relevant EC directives

Differential pressure (PS) 0,35 - 8,5 bar [1 bar = 100kPa]

Ambient temperature range -20 to +85°C

CONSTRUCTION

Body Aluminium

Core tube Stainless steel

Core and plugnut Stainless steel

Springs Stainless steel
